Wednesday, August 31, 2016

What is happening in the corn plant during the month of September?


In mid-August, USDA-NASS made their initial corn yield projections for the 2016 season. However, September is really the month when we project how our farming skills and previous decisions come together to produce a corn crop. By this time, yield becomes secondary because the season and growth of the crop is largely over. A lot can still happen, but the focus of many decisions are based upon plant and grain moisture.

During September, the crop has usually dented and the kernel milkline is progressing towards the kernel tip. Physiological maturity is reached when all kernels on the ear have attained their dry matter maximum accumulation. Eventually a black abscission layer forms indicating that moisture and nutrient transport from the plant has ceased. Once physiological maturity (R6-Black layer) is achieved it is a physical process to dry the grain down to a harvest moisture between 20 and 25%.

Husk leaves turn color and ears begin to droop. Most modern hybrids have the stay-green trait which allows for better stalk quality and standability in the field. High yielding years  often put stress on the plant due to "stalk cannibalization" where nutrients are translocated to developing kernels at the expense of stalk health.

Figure 1. Normal Pattern of Corn Forage and Grain Development

If ensiling can be used to store grain, then corn silage or high moisture grain can be harvested. Silage harvest would be slightly earlier than R6 as milkline moves down towards kernel tip (Figure 1). High moisture corn is usually harvested shortly after R6. Frost has no effect on yield at this point. However, lodging from disease, insect damage or can result in physical loss of yield.

September is the month when corn silage is harvested in Wisconsin. Silage choppers put a lot of material through a relatively small opening cutting (or shredding) plants to 3/4 inch TLC along with kernel processing to break kernels. Usually the window to harvest corn silage is about 7 to 14 days depending upon the maturities of the hybrids selected at planting. Owning your own chopper provides more flexibility for timing harvest. If dealing with custom silage choppers it is imperative to communicate accurately the whole plant moisture of your fields and the rate of drydown. Adjustments to silage moisture can still occur by raising or lowering the cutter bar because the driest part of the plant is the grain.

During September, dry grain is usually not ready for safe storage; it needs to be at 13-15% moisture for long-term storage. It may be advantageous to let crop partially dry in the field.

Thursday, August 25, 2016

Timing Corn Silage Harvest


Corn must be ensiled at the proper moisture to get fermentation for preservation. But, determining when to harvest corn at the right whole plant moisture is difficult. Each storage structure properly ensiles at slightly different plant moisture optimums. Harvesting corn too wet for the storage structure will result in reduced yield, souring and seepage of the ensilage, and low intake by dairy cows. Harvesting too dry reduces yield, can cause mold to develop, and lowers digestibility, protein and vitamins A and E.

Kernel milk is not a reliable guide for timing silage harvest

Dry matter content of whole plant corn varies with maturity. The position of the kernel milk-line is not a reliable indicator for determining harvest timing. Geographic location, planting date, hybrid selection, and weather conditions affect the relationship between kernel milk-line position and whole plant dry matter content.

Determining field harvest order and initial plant sampling

The first step to determine when a field is ready for harvest is to note the order in which you planted your fields. Next, note silking dates of the fields to project calendar days to when a field will mature. Once corn silks, approximately 55 to 60 days is required to achieve maturity at R6 or the "black layer" stage (Abendroth et al., 2011). Development during grain filling is influenced by temperature, but not as much as during the vegetative leaf emergence stages. Instead the number of days between pollination and a killing frost influence the time to maturity. So if an average killing frost occurs October 1, then subtracting 55 to 60 days means that the crop must be silking by August 2-7.

We know that kernel milk stage is not reliable for determining the actual harvest date, but it is a useful indicator of when to sample fields to measure plant dry matter. Silage harvest usually begins around 50% kernel milk which is 42 to 47 days after silking, so silking must occur by August 15-20 in order to mature before typical killing frost dates; but remember that the timing of silage harvest is dependent upon achieving the proper moisture for the storage structure (Table 1). Noting the order that fields silk will help plan the harvest queue of your fields and scheduling of custom choppers.


Table 1. Kernel milk stage "Triggers" for timing silage harvest
Silo Structure Ideal Moisture Content Kernel Milk Stage "Trigger"
  % %
Horizontal bunker 70 to 65 80
Bag 70 to 60 80
Upright concrete stave 65 to 60 60
Upright oxygen limiting 50 to 60 40
"Trigger": kernel milk stage to begin checking silage moisture.

Determining Silage Moisture

The only reliable method of determining the optimal time to harvest corn silage is to sample the crop and directly measure the % dry matter of whole plants. This information combined with average whole plant dry-down rates can be used to roughly predict the proper time to harvest corn silage.

The next plant indicator that determines the order of fields to harvest is movement of the kernel milkline. Once kernel milkline begins to move, measure moisture of fields intended to be harvested for silage (Table 1). Corn should be first sampled to measure dry matter shortly after full dent stage (80% kernel milk) for bunker silos and bags, at 60% kernel milk for conventional tower silos, and at 40% kernel milk for sealed (oxygen-limited) tower silos. It is important to begin sampling early as a precaution against variation in dry down.  You will likely be too wet, but you will have an indication of how quickly drydown is occurring when the next sampling date takes place.

Sampling a field for whole plant moisture

Ideally the field to be harvested is uniform in development, but the reality is that uniformity is rarely achieved. Separate uneven fields into representative groups. Figure 1 describes the moisture drydown patterns of two locations in the same field. Knoll areas were as much as 20% units different from swale areas.

 Figure 1. Forage moisture of corn growing on a knoll and a swale at Arlington during 2003.

Sample two or more locations for each representative group in the field. Over time, sample the same locations - trying to determine the rate of drydown. Scott Hendrickson (Manitowoc county agent) measured whole-plant moisture over time at three sites in the county by always returning to the same location in the field (Figure 2). Depending upon year the average drydown rate ranged from 0.4 to 0.7 percent per day.

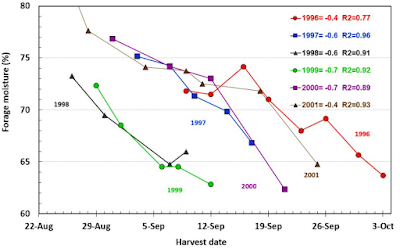

Figure 2. Corn silage drydown during harvest (Hendrickson, Manitowoc County, WI)

Procedure for measuring plant moisture
  1. Sample 3 to 5 plants in a row that are well bordered and representative.
  2. Put in plastic bag,
  3. Keep plants cool,
  4. Chop as quickly as possible,
  5. Measure moisture using NIR spectroscopy and/or by drying using a, Koster oven, microwave, or convection oven (Peters, 2000).
Predicting silage harvest date

Use 0.5% per day during September to predict the date when a field will be ready for the storage structure. For example, if a given field measures 30% dry matter at the early sampling date, and the target harvest dry matter is 35%, then the field must gain an additional 5% units of dry matter, thus requiring an estimated 10 days (5% units divided by 0.5 unit change per day). If weather is warm and dry, use a faster rate of drydown (1999 and 2000 in Figure 2). If weather is cool and wet, use a slower rate of drydown (1996 and 2001 in Figure 2). We are most interested in the rate of corn silage drydown. Wisconsin county agents have been accumulating corn silage drydown information since 1996. Results from county "Drydown Days" can be checked at the website http://fyi.uwex.edu/silagedrydown/ which averages and predicts area harvest dates.

This procedure provides only a rough estimate for the harvest date. Many factors affect dry down rate, including hybrid, planting date, general health of the crop, landscape position, soil type, and weather conditions. In general, corn silage that is slightly too dry is worse than corn silage that is slightly too wet. Therefore, starting harvest a little early is usually better than waiting too long.

Literature Cited

Peters, J. 2000. On-Farm Moisture Testing of Corn Silage [Online]. Available at http://fyi.uwex.edu/forage/files/2014/01/CSMoistTest-FOF.htm_.pdf (verified 25 August 2016). Focus on Forages, UW-Madison.

Abendroth, L.J., R.W. Elmore, M.J. Boyer, and S.K. Marlay. 2011. Corn growth and development. PMR1009. Iowa State University.
